One picture to understand 丨 Which parts must be CCC, which parts can be randomly tested?
Date:2022/3/24  Clicks:767
1. Case issues
When applying for CCC certification for the whole machine, which parts must be certified by CCC and cannot be tested with the whole machine? Which parts can be tested with the whole machine according to the component standard without CCC certification? Which parts don't need anything?

For example, a motor produced by Shenzhen A Company in the same group is supplied to Hefei Company B in the same group to produce an electric fan. Does this motor have to make a CCC self-declaration?

2. Case analysis
According to the announcement, catalogue, technical expert group resolution of CNCA on CCC certification and the certification body's "Technical Requirements for Recognition of CB Report/Certificate in CCC Certification" and other documents, the above issues can be explained in the following figure.

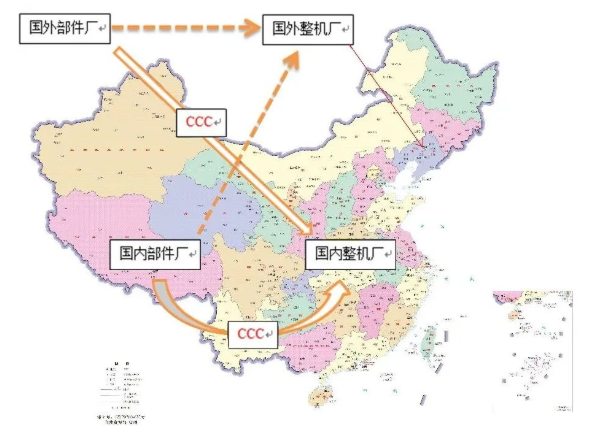

Figure Parts factory - complete machine factory relationship diagram

The parts and components in the CCC catalog are not sold in China, and no CCC is required, only the test report of the whole machine is required according to the standard of parts and components.
Parts and components in the CCC catalog are sold in China and must be certified by CCC (type test + factory inspection + post-certification supervision), and cannot be tested with the whole machine.

General principles:
The key components in the CCC catalog + sales in China = CCC certification (type test + factory inspection + post-certification supervision, or self-declaration), you can't just test with the whole machine.

The key components in the CCC catalog + no sales in China = the B report can be obtained by testing the whole machine according to the component standard, no CCC certification is required.

Situation 1 New application for CCC of the whole machine:
Domestic CCC parts factory + domestic complete machine factory = CCC certification is required (type test + factory inspection + supervision after certification)

Foreign CCC parts factory + domestic complete machine factory = CCC certification is required (type test + factory inspection + supervision after certification)

Domestic CCC parts factory + foreign complete machine factory = no CCC certification, must report with the whole machine test parts

Foreign CCC parts factory + foreign complete machine factory = no CCC certification, must report with the whole machine test parts

Special case:
Different branches of the same group or the whole machine factory produce CCC parts and supply themselves, do not sell to outsiders = report with the whole machine test parts, do not need CCC certification.

For example, in the situation described in the question, if the client submits the "Declaration" to the certification body, the motor only needs to be accompanied by the test report of the whole machine and does not require CCC certification. The content of the declaration should include:
1. Motors are self-produced and self-supplied, not for sale.
2. The relationship between Shenzhen Company A and Hefei Company B.

Parts "producer (also known as manufacturer) A + production enterprise (also known as production plant) B" are supplied to the complete machine "producer (also known as manufacturer) A + production enterprise (also known as production plant) A" , but the manufacturer A entrusts the production plant B to process it, and it is not considered to be sold.

Case 2 Use CB to apply for CCC of the whole machine:
There are certified foreign components such as VDE, TUV, SGS, etc. that are coordinated with IEC standards, and CCC certification is not required. Exception: "If the complete machine manufacturer is located in mainland China, the key components in the CCC catalog used in the complete machine must be certified by CCC".

3. Laws-regulations-technical coordination standards
AQSIQ and CNCA Announcement No. 33 in 2001 "The First Batch of Product Catalogues Implementing Compulsory Product Certification"

According to the Product Quality Law of the People's Republic of China, the Import and Export Commodity Inspection Law of the People's Republic of China, the Implementation Regulations of the Import and Export Commodity Inspection Law of the People's Republic of China, the Regulations of the People's Republic of China on the Administration of Product Quality Certification and the Compulsory Product Certification The General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China and the National Certification and Accreditation Administration decided to issue the "First Batch of Product Catalogues Implementing Compulsory Product Certification" (hereinafter referred to as the "Catalogue"), which contains 19 categories of 132 products (see the appendix). ). For the commodities listed in the catalog, applications will be accepted from May 1, 2002. From May 1, 2003, products that have not obtained the compulsory product certification and have not applied the China Compulsory Certification Mark shall not leave the factory or import. ,Sale.

Attachment: The first batch of product catalogues to implement compulsory product certification
1. Wire and cable (5 types in total)
...
December 3, 2001

No. 18 of 2020 "Announcement of the State Administration for Market Regulation on Optimizing the Catalogue of Compulsory Product Certification" and the annex "Description and Definition Table of the Catalogue of Compulsory Product Certification (Revised in 2020)" (Government Information on the CNCA Official Website - Announcement Column)

Certification and Accreditation Administration of the People's Republic of China issued a technical resolution
TC04-2014-02 CNCA/TC04 CNCA/TC04 National Certification and Accreditation Administration Household Appliances Expert Group on September 9, 2014 Technical Resolution on Requirements for Compulsory Product Certification of Household and Similar Equipment for Key Components and Materials.

This document specifies which components are key components and should be included in the list of key components in the CCC type test report. For example, motors should be listed, but X, Y capacitors and screws do not need to be listed for the time being.
